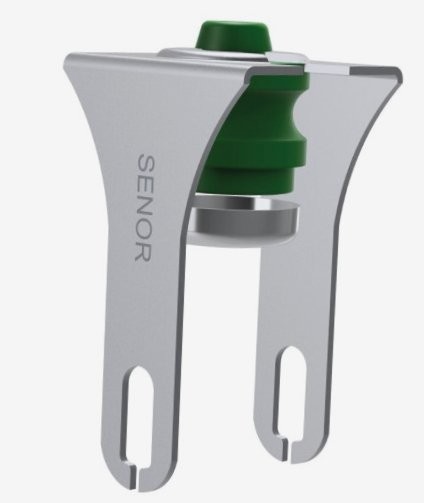

Acoustic Hanger / 105-PC Series

TPE mount designed specifically for modular ceilings. Designed to eradicate and attenuate vibration from units performing above 20Hz.

**For fitting to primary and secondary support channels on T-24 and T-25 profiles.**

Features:
- Optimal load of 8kg to 30kg per mount.
- Quick and simple to install.
- Designed for detachable ceilings.

Acoustic Hanger / A6-H Series

High performance acoustic mount with double rotatory rivets that allow adjustment of the mounting position. In addition to this the box design ensures that the TPE body is always in compression, avoiding damage to the body and also maximising its performance.

**Suited for any ceiling profile with steel channels.**

Features:
- Optimal load of 20kg to 45kg per mount.
- Dual lock holds hanger in place and secures ceiling.
- Tested to acoustic standard ISO 10846-1.

Acoustic Hanger / F-RAPID-GM-47 DS2 SERIES

The F/RAPID-GM/47 acoustic mount series has an advanced double locking mechanism that offers quick and simple installation. Simply slide the acoustic hanger along the metal channel to place at the intended point.

** Suited for acoustic ceilings with 45-47mm profile.**

Features:
- Optimal load of 3kg to 45kg per mount.
- Eliminates noise and vibration above 20Hz.
- Meets acoustic standards 13664 and 10846.

Acoustic Hanger / F-RAPID-GM-60 DS2 SERIES

The F/RAPID-GM/60 acoustic mount series has an advanced double locking mechanism that is strong enough to secure the ceiling in place in the event of a fire. In addition to this the 1.5mm plate thickness provides enhanced security compared to regular connectors. Simple to install and can be slide across the metal channel to the exact fixing point.

**For use with C-Stud 60mm profile ceiling channels.**

Features:
- Can be used as simple connector by removing polymer body.
- Optimal load of 3kg to 45kg per mount.
- Eliminates noise and vibration above 20Hz.
- Tested to ISO 10846-1 acoustic standard.

Acoustic Hanger / FTD-MINI-47

**NEW PRODUCT**

Ultra-thin acoustic mount that is ideally suited for small spaces. The FTD-MINI 47 acoustic hanger has a unique feature called Clip Stop that enhances both performance and safety aspects of the acoustic ceiling.

**For use with 45-48mm plasterboard ceilings.**

Features:
- Reduces airborne noise by >12DBa.
- Increases acoustic performance by >10DBa.
- Unique Clip Stop enhances safety and performance.
- Optimal Load: 3kg to 25kg per mount.

Acoustic Hanger / HORQ CAB-DS2

Double locking device allows 90 degree turns on the hangers axis, allowing the user to fix the acoustic mount into the desired position. Ultra fast levelling with easy placement at any point along the frame.

**For use with STIL PRIM 100 ceiling profile**.

Features:
- Optimal load of 8kg to 50kg per mount.
- No screws required for installation.
- Simply twist to fasten in place.
- Peak performance at low-medium frequencies.

Acoustic Hanger / MS-50 Series

An acoustic mount that requires no fixing accessories which is quick to install. The unique folded steel plate enables the MS-50 mount to be installed in multiple positions.

**For use with C and Stud ceiling frames.**

Features:
- Optimal load of 8kg to 50kg per mount.
- Ultra fast fixing and levelling.
- Peak performance in low-medium frequencies.
- Tested to acoustic standard ISO 10846-1.

Acoustic Hanger / PL-25 Series

The PL-25 acoustic mount has an advanced locking plate that is quick and simple to fit. Eradicates and attenuates vibration transmission from 20Hz.

**For use with STIL PRIM 50 galvanised steel ceiling profiles.**

Features:
- Optimal load of 8kg to 50kg per mount.
- Holds ceiling in place in event of fire.
- Easy and quick to install.
- Tested to ISO 10846-1 acoustic standard,

Acoustic Hanger / PL-50 Series

The PL-50 acoustic mount has an advanced locking plate that is quick and simple to fit. Eradicates and attenuates vibration transmission from 20Hz.

**For use with STIL PRIM 50 ceiling frames**.

Features:
- Optimal load of 8kg to 50kg per mount.
- Locking system ensures structure remains intact.
- Easy and quick to install.
- Meets suspended ceiling standard 13964.

Acoustic Hanger / SE-4360-47 Series

Rubber and steel acoustic hanger for suspended ceilings that can eradicate and attenuate sound and vibration from 20Hz. Fitted with advance locking mechanism that prevents deformation of ceiling channels due to overweight.

** For use with 45-47mm ceiling channels**.

Features:
- Optimal load of 8kg to 50kg per mount.
- Tested to ISO 13964:2016 standard.
- Easy to position in ceiling channels.

Acoustic Hanger / T5000

**NEW PRODUCT**

An ultra-fast vertical suspension acoustic mount designed to eradicate and attenuate transmission of vibrations produced by equipment operating above 20Hz.

**For use with wide variety of acoustic ceilings.**

Features:
- Ultra fast fastening and easy positioning.
- Excellent soundproofing properties.
- Optimal Load: 8kg to 50kg per mount
